    oem 145 Series

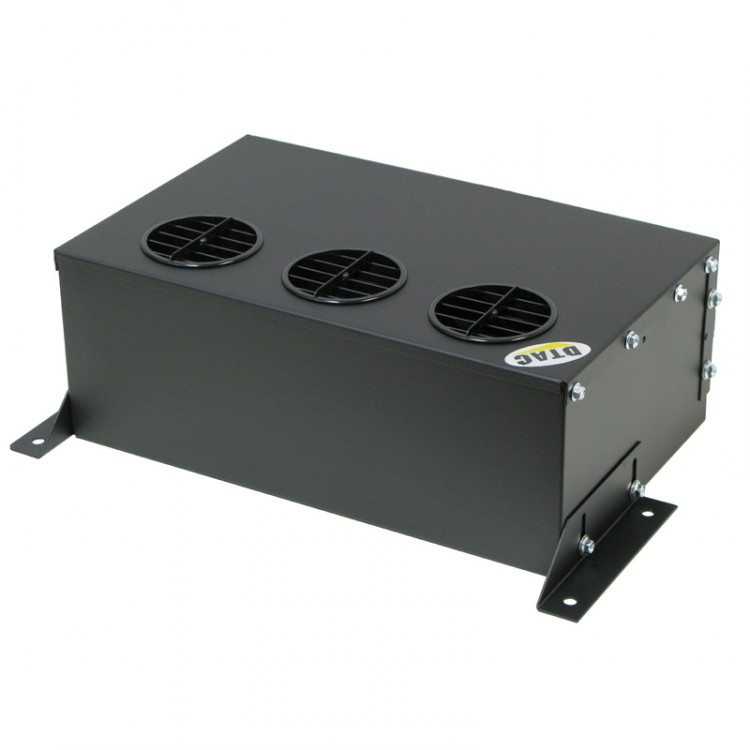

    145 Series Evaporator – OEM

    CUSTOM HEAT/COOL, FLOOR MOUNT, REMOTE SWITCHES

    Features

    • Available 12 or 24 volt
    • Three speed blower motor
    • 3 – 3.5″ upward facing directional louvers
    • Removable washable filter
    • Steel case with black powder coat finish
    • Remote harness
    • Includes Heat

    Specifications​

    Unit Number BTU’s Cool BTU’s Heat Air flow Height Width Depth Weight Motor Current draw
    145-12 20,000  25,000  295 CFM 6.5″ 17.25″ 9.75″ 24 LBS 1 – 12v 13 amps @ 13.5 vdc
    Call “ “ “ “ “ “ “ 1 – 24v 8 amps @ 27 vdc
    Your inquiry has been sent!
    Send An Inquiry
    Category: . Tags: , , , .

    Product Description

    Custom OEM unit based off 141 Series platform. The 145 series add heat and is designed to be floor mounted with top facing louvers. The remote harness allows the unit to be located out of reach of the operator, behind the seat for example, and operate the unit with dash mounted controls.

    Click here to see the entire family of multi mount units
