    331 SERIES

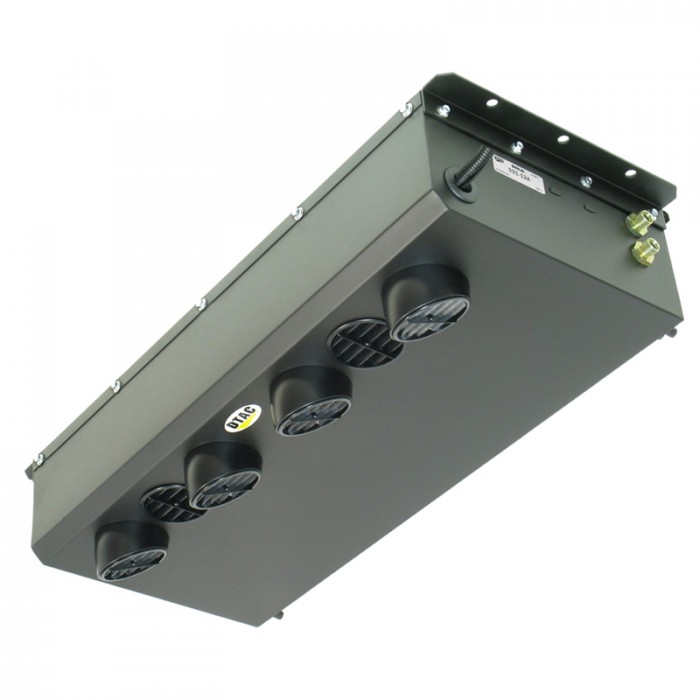

    331-A Series Evaporator

    HEAVY DUTY HEAT/COOL, CEILING MOUNT, DUAL BLOWER, REMOTE SWITCHES

    Features

    • Available 12 or 24 volt
    • Dual three speed blower motor
    • Fully insulated housing reduces condensation
    • Remote Switches
    • Heat and A/C
    • 6 – 3.5″ directional round louvers
    • Removable, washable filter
    • Heavy duty metal construction
    • Removable lid for easy access

    Options

    • Outside air adapter for pressurization. P/N 33-00013

    Specifications

    Unit Number BTU’s Heat BTU’s Cool Air flow Height Width Depth Weight Motor Current draw
    331-12A 35,000 40,000 465 CFM 6.68″ 36.75″ 16″ 65 LBS 2 – 12v 25 amps @ 13.6 vdc
    331-24A “ “ “ “ “ “ “ 2 – 24v 15 amps @ 27 vdc
    Your inquiry has been sent!
    Send An Inquiry
    Category: . Tags: , , .

    Product Description

    The 331 model is our highest capacity headliner unit and includes a fully insulated housing to reduce or eliminate condensation build up.

    The 315 and 330 Series includes our most powerful and top rates headliner units engineered to meet the demands of larger cabs and harsh conditions. Each unit includes a high capacity coil and dual blower motors necessary to keep the operator comfortable. Due to the popularity of the 315 Series it is available is several different configurations.

    Click here to see the entire family of headliner units
