    707 Hydraulic

    707 Series Evaporator

    HEAVY DUTY, COOL ONLY, ROOFTOP, HYDRAULIC COMPRESSOR

    Features

    • Available 12 or 24 volt
    • Three speed blower motor
    • A/C Only
    • Includes hydraulic compressor
    • Adjustable thermostat
    • Rubber latched cover for easy service access

    Specifications

    Unit Number BTU’s Cool Air flow Height Width Depth Weight Motor Current draw
    707-12 23,500 345 CFM 13.25″ 23.25″ 30.25″ 92 LBS 1 Evaporator\1 Condenser – 12v **27 amps @ 13.5 vdc
    707-24 1 Evaporator\1 Condenser – 24v **14 amps @ 26.8 vdc

    ** Amp draw for rooftop unit only. Does not include hydraulic compressor.

    Your inquiry has been sent!
    Send An Inquiry

    Product Description

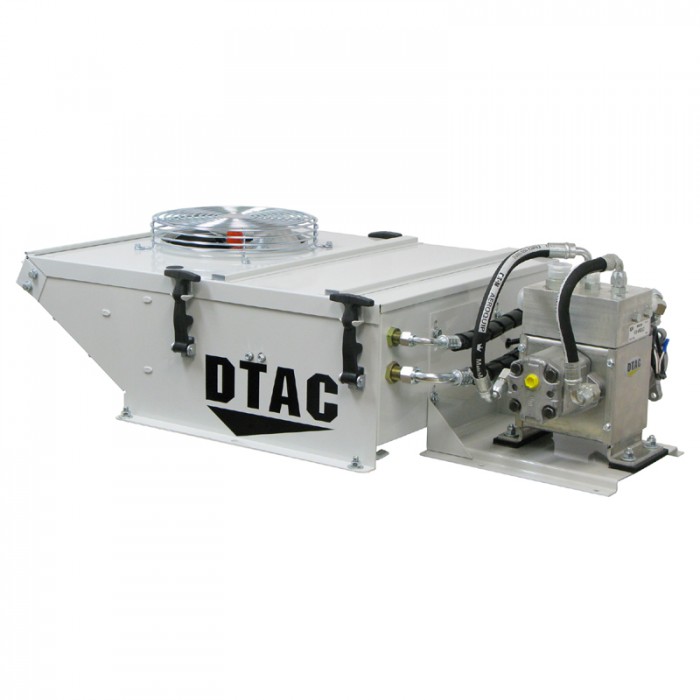

    The 707 model combines our 701 Series cool only rooftop with our hydraulic compressor for a complete rooftop A/C system.

    Our classic rooftop units provide the performance and reliability you demand in off-road applications. Rooftop systems provide a simple and efficient design by integrating the evaporator and condenser into a single compact package. Manufactured from heavy gauge steel and available with heat and pressurization, our 700 Series are rugged enough to meet all your rooftop needs.
