    301 series

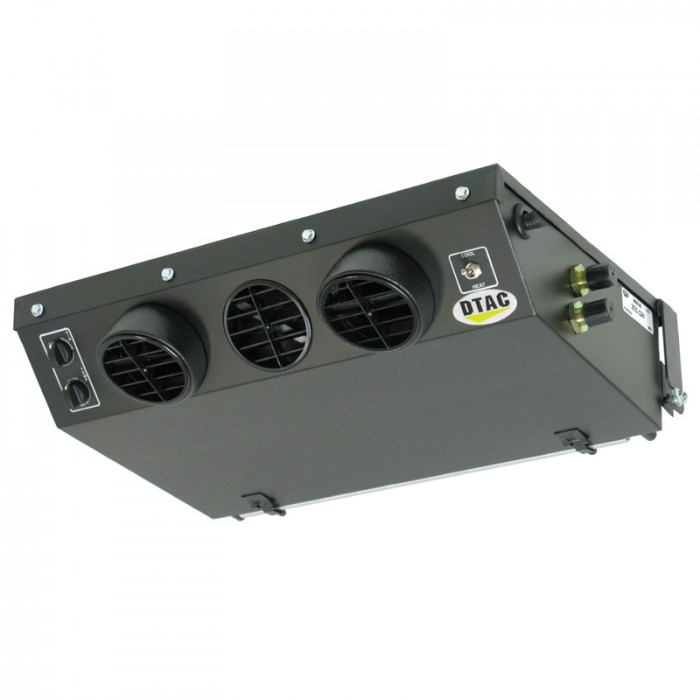

    301-V Series Evaporator

    HEAVY DUTY HEAT/COOL, CEILING MOUNT

    Features

    • Available 12 or 24 volt
    • Three speed blower motor
    • Adjustable thermostat
    • 3 – 3.5″ directional round louvers
    • Removable, washable filter
    • Low profile for maximum head room
    • Steel case with black powder coat finish

    Options

    • Outside air adapter for pressurization. P/N 11-52104

    Specifications

    Unit Number BTU’s Heat BTU’s Cool Air flow Height Width Depth Weight Motor Current draw
    301-12V 16,600 20,200 295 CFM 5.75″ 22″ 15.5″ 24 LBS 1 – 12v 13 amps @ 13.5 vdc
    301-24V 1 – 24v 8 amps @ 27 vdc
    Your inquiry has been sent!
    Send An Inquiry

    Product Description

    The 301 Series offers both A/C and Heat.

    The 300 Series are extremely popular because of their size, performance and ease of maintenance. Designed for small to medium-sized cab applications, the 300 Series units are so effective because the cool the operators head and upper torso. Models range from our most compact headliner, the 305, to the largest of the 300 Series, the 310, which includes one of our highest capacity coils

    Click here to see the entire family of headliner units
