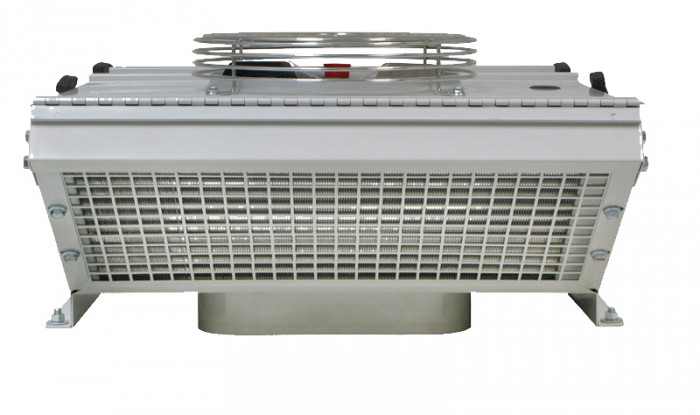

    701 ROOFTOP

    702 Series Evaporator

    HEAVY DUTY, HEATCOOL, ROOFTOP

    Features

    • Available 12 or 24 volt
    • Three speed blower motor
    • Heat & A/C
    • Adjustable thermostat
    • Rubber latched cover for easy service access
    • Similar to the 701 Series, but includes heat and more cooling-BTU’s

    Specifications

    Unit Number BTU’s Cool BTU’s Heat Air flow Height Width Depth Weight Motor Current draw
    702-12 30,000 15,500 345 CFM 13.25″ 23.25″ 30.25″ 92 LBS 1 Evaporator\1 Condenser – 12v 27 amps @ 13.5 vdc
    702-24 “ “ “ “ “ “ “ 1 Evaporator\1 Condenser – 24v 14 amps @ 26.8 vdc
    Your inquiry has been sent!
    Send An Inquiry
    Category: . Tags: , , .

    Product Description

    The 702 Series is our Heat & Cool Rooftop.

    Includes an electrically controlled water-valve.

    Although this unit includes heat, it also includes a larger evaporator coil offering more cooling BTU’s than our cool-only 701 Series.

    Our classic rooftop units provide the performance and reliability you demand in off-road applications. Rooftop systems provide a simple and efficient design by integrating the evaporator and condenser into a single compact package. Manufactured from heavy gauge steel and available with heat and pressurization, our 700 Series are rugged enough to meet all your rooftop needs.

    Pressurization is not available.

    Click here to see the entire family of rooftop units
