    701 DONALDSON

    708 Series Evaporator

    HEAVY DUTY, COOL ONLY, ROOFTOP

    Features

    • Available 12 or 24 volt
    • Three speed blower motor
    • A/C Only
    • Includes Donaldson canister & pre-filter
    • Adjustable thermostat
    • Rubber latched cover for easy service access

    Specifications

    Unit Number BTU’s Cool Air flow Height Width Depth Weight Motor Current draw
    708-12 23,500 345 CFM 21.00″ 23.25″ 44.00″ 100 LBS 1 Evaporator\1 Condenser – 12v 27 amps @ 13.5 vdc
    708-24 1 Evaporator\1 Condenser – 24v 14 amps @ 26.8 vdc
    Your inquiry has been sent!
    Send An Inquiry

    Product Description

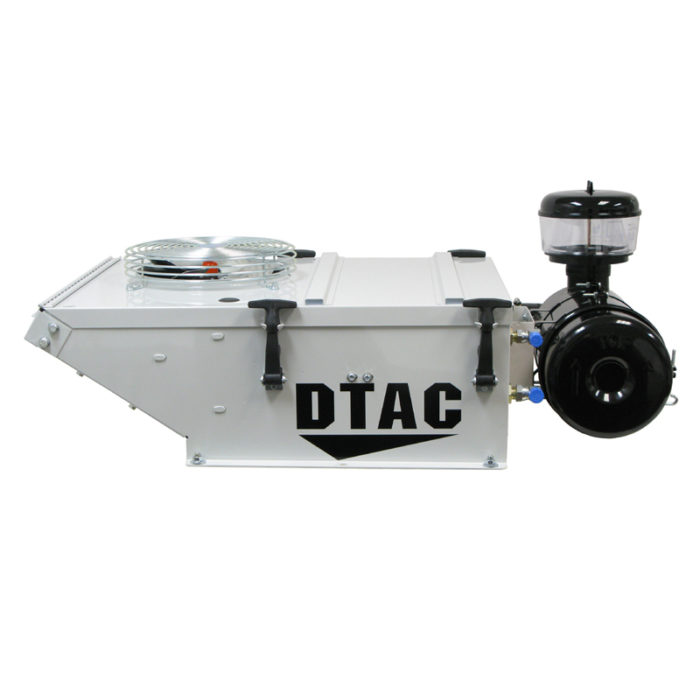

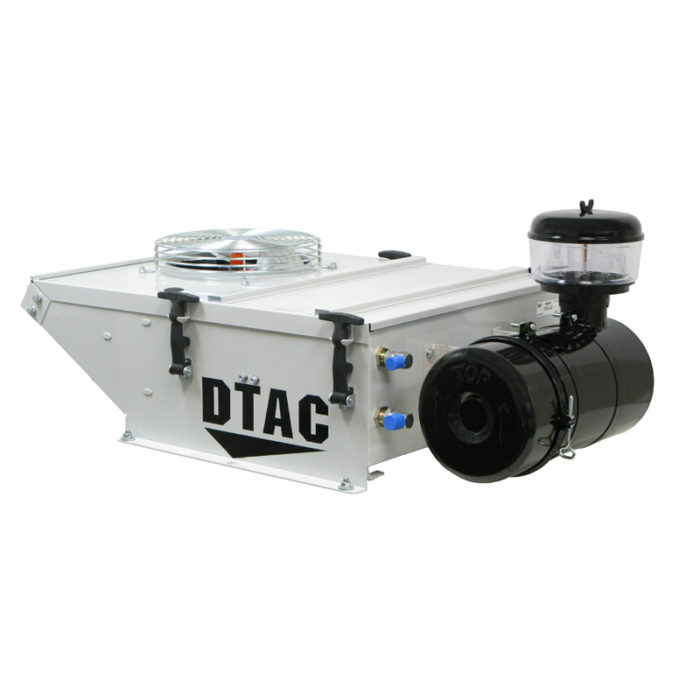

    The 708 is our 701 unit with a pre-installed Donaldson canister & pre-filter assembly.

    Our classic rooftop units provide the performance and reliability you demand in off-road applications. Rooftop systems provide a simple and efficient design by integrating the evaporator and condenser into a single compact package. Manufactured from heavy gauge steel and available with heat and pressurization, our 700 Series are rugged enough to meet all your rooftop needs.

    Click here to see the entire family of rooftop units
