    07-35002 Series Catalog

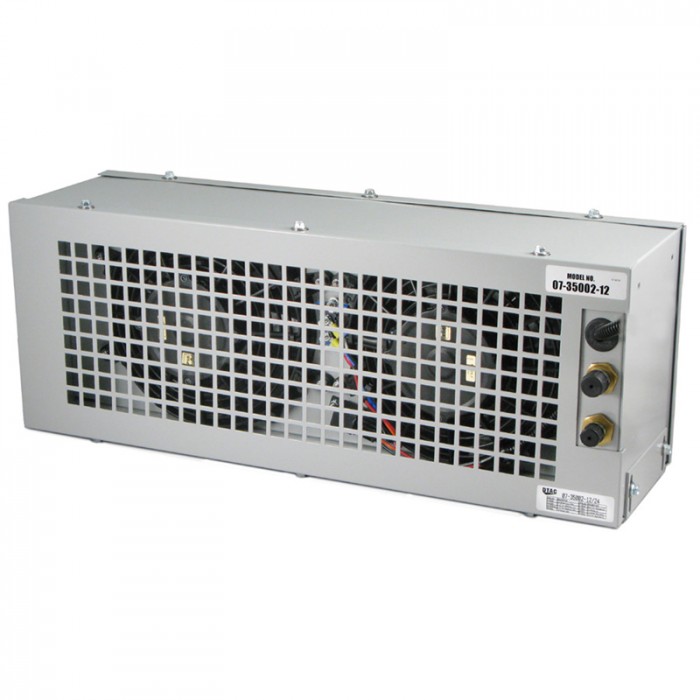

    07-35002-A Series Remote Condenser

    Remote Mounted Condenser, Dual 9" Fans


    • Includes Water Proof relays
    • Available 12 or 24 volt
    • Can be used as a puller or pusher fan
    • Multiple mounting options:
      • Upright
      • Facing down
      • Facing up
    • Steel case with grey powder coat finish


    Unit Number BTU’s Cool Air flow Height Width Depth Weight Motor Current draw
    07-35002-12A 35,000 975 CFM 9.75″ 26.5″ 7.5″ 27 LBS 2 – 12v 10.5 amps @ 13 vdc
    07-35002-24A 2 – 24v 5.3 amps @ 26.8 vdc
    Your inquiry has been sent!
    Send An Inquiry
    Category: . Tags: , .

    Product Description

    The 35002-A Series is compact and rugged with versatile mounting options. Its unique size and shape allow it to fit where other condensers cannot. The heavy gauge, fully enclosed steel housing guards the dual 9″ motors and coil from damage, giving the 35002 Series unprecedented durability.

    Click here to see the entire family of remote powered condensers
