    07-34010

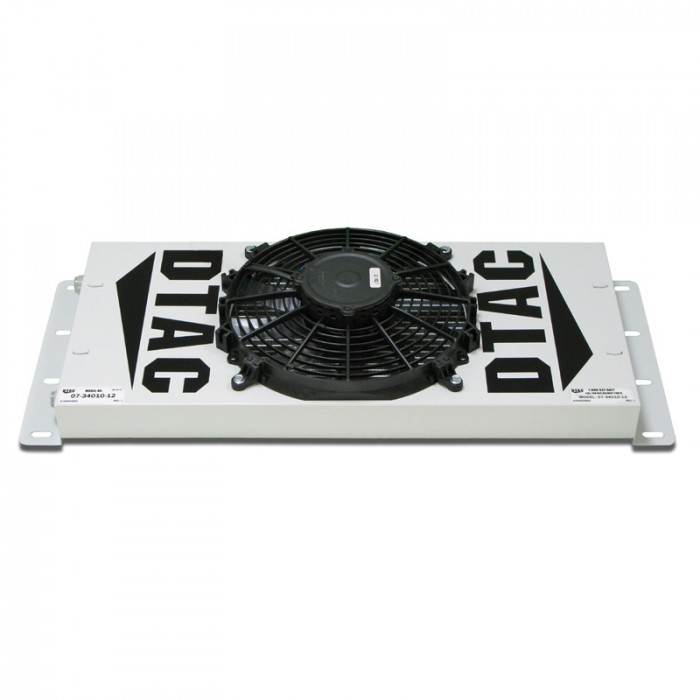

    07-34010-A Series Remote Condenser

    Remote Mounted Condenser, 11" Low Profile Fan

    Features

    • Includes Water Proof relay
    • Available 12 or 24 volt
    • 11″ low profile fan
    • Water resistant motor
    • Steel case with grey powder coat finish

    Specifications

    Unit Number BTU’s Cool Air flow Height Width Depth Weight Motor Current draw
    07-34010-12A 25,000 690 CFM 5″ 30.5″ 14.75″ 27 LBS 1 – 12v 8.2 amps @ 13 vdc
    07-34010-24A “ “ “ “ “ “ 1 – 24v 5 amps @ 26.8 vdc
    Your inquiry has been sent!
    Send An Inquiry
    Category: . Tags: , .

    Product Description

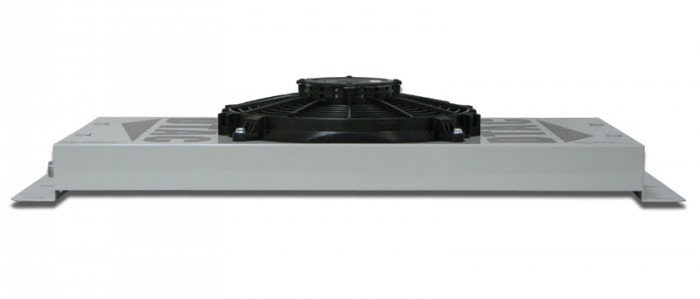

    The 34010-A Series condenser offers great performance in a very slim design.  At only 5″ tall, this model is our lowest profile powered condenser.

    The 34010-A combines high performance and low profile mounting.  The high capacity multi-flow condenser coil is protected by a sturdy steel case and cooled by a 11″ high capacity fan assembly.

    Click here to see the entire family of remote powered condensers
